ThinkSystem 430-16e - Speicher-Controller - 16 Sender/Kanal - SATA / SAS 12Gb/s Low Profile - 1.2 GBps - PCIe 3.0 x8 - för ThinkSystem SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, ST550 - 7Y37A01091

ThinkSystem 430-16e SAS/SATA 12Gb HBA
SEK 0.00 Exkl. moms
SEK 0.00 Inkl. moms
SKU: 7Y37A01091
Kondition: New
Lagerstatus: Not available
Garanti: Learn More
Betalning och fraktmetoder:

Got Questions? Click here to chat with our presales consultant and make the right purchase.


OBS: Informationen nedan tillhandahålls endast för din bekvämlighet, specifikationernas noggrannhet kan inte garanteras. Men om det behövs, vänligen verifiera med oss ​​innan du köper. Data tillhandahålls av 1 World Sync

General
Host interface
PCIe
Output interface
SAS,SATA
Expansion card form factor
Full-height / Low-profile
Product colour
Black, Green
Certification
FCC Part 15 Class A, Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES-003 Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), WEEE, EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B class B)
Data transfer rate (max)
12000 Gbit/s
Compatible operating systems
Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Red Hat Enterprise Linux 6 Server x64 Edition, Red Hat Enterprise Linux 7, SUSE Linux Enterprise Server 11 for AMD64/EM64T, SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T, SUSE Linux Enterprise Server 12, SUSE Linux Enterprise Server 12 with XEN, VMware vSphere ESXi 6.0, VMware vSphere ESXi 6.5
Compatibility
SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530
Download Link

Lenovo 7Y37A01091. Host interface: PCIe, Output interface: SAS,SATA, Expansion card form factor: Full-height / Low-profile. Product colour: Black, Green, Certification: FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe.... Data transfer rate (max): 12000 Gbit/s. Compatible operating systems: Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server..., Compatibility: SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530

https://lenovopress.com/lp0650-thinksystem-430-8e-16e-external-sas-hba

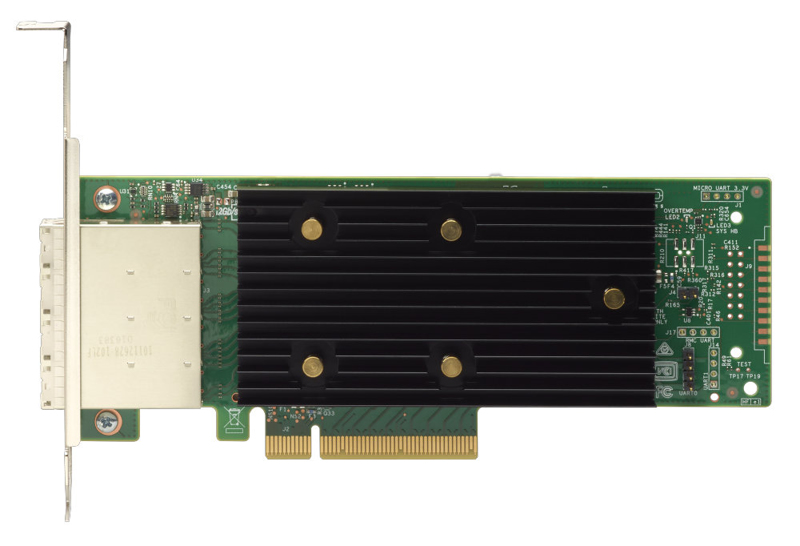

The Lenovo ThinkSystem 430-8e and 430-16e SAS/SATA 12Gb HBAs are high performance host bus adapters for external storage connectivity in ThinkSystem servers. The 430-8e provides two x4 external mini-SAS HD connectors with eight lanes of 12 Gbps SAS. The 430-16e provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.

This product guide provides essential presales information to understand the ThinkSystem external HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.

  • PCIe 3.0 x8 host interface
  • Supports 6 or 3 Gbps SATA speeds
  • External x4 HD Mini-SAS connectors (SFF-8644):
  • 430-8e: 2 external connectors
  • 430-16e: 4 external connectors
  • Support for external storage systems and tape backup units
  • High performance architecture with very deep queue depth
  • Advanced power management support
  • Support for SSP, SMP, STP, and SATA protocols
  • End-to-End CRC with Advanced Error Reporting
  • Spread Spectrum Clocking for EMI reductions
  • 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
  • Supports 512e, 512n and 4K (when available) formatted drives
  • Compliant with Disk Data Format (DDF) configuration on disk (CoD)
  • S.M.A.R.T. support
  • Configuration through
  • XClarity Provisioning Manager UEFI interface
  • XClarity Controller web interface
  • XClarity Administrator Configuration Patterns
  • StorCLI command-line interface
  • LSI Storage Authority (LSA) GUI interface
  • UEFI Human Interface Infrastructure (HII)
  • PCI low profile, half-length form factor
  • External 12 Gbps SAS/SATA ports:
  • 430-8e: 8 SAS/SATA ports
  • 430-16e: 16 SAS/SATA ports
  • Connectivity for up to 512 external SAS or SATA drives (future planned support for an upper limit of 1024 drives)
  • Up to 12 Gbps throughput per port
  • Supports 12, 6, or 3 Gbps SAS speeds

User Rating

0.00 average based on 0 reviews.

Lägg helt enkelt till produkten i varukorgen, gå till kassasidan och betala där med säkra betalningsmetoder.

Du kan alltid kontakta oss via e-post eller telefon för att bekräfta LAGERSTATUS och lagerantal.

När du har lagt din beställning bekräftar vårt team den och skickar den vidare till lagret. Varje beställning hanteras, bearbetas och skickas enligt vår tidsplan. Leverans tar 4–5 dagar och vi skickar alltid med UPS.

Vårt team finns alltid tillgängligt för att hjälpa dig med support efter köpet, inklusive installationer, konfigurationer och teknisk support i detalj.

Vi säljer äkta och originalprodukter, direkt från olika distributörer och tillverkare. Vi tillhandahåller den standardgaranti som följer med varje produkt och hanterar RMA och garantireklamationer enligt gällande rutiner.

Vi accepterar returer inom 14 dagar, endast om varorna är oanvända, i originalförpackning, oöppnade och inte undantagna (t.ex. programvara, licenser, specialbeställningar). Återbetalningar sker efter inspektion; kunden ansvarar för returfrakt.

Dina uppgifter och betalningar är 100 % säkra hos oss. Vi erbjuder säkra betalningsmetoder på vår kassasida för att ge dig en smidig köpupplevelse. Betalningar hanteras av vårt moderbolag, “FF Detaljhandel AB”.

General
Host interface
PCIe
Output interface
SAS,SATA
Expansion card form factor
Full-height / Low-profile
Product colour
Black, Green
Certification
FCC Part 15 Class A, Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES-003 Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), WEEE, EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B class B)
Data transfer rate (max)
12000 Gbit/s
Compatible operating systems
Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Red Hat Enterprise Linux 6 Server x64 Edition, Red Hat Enterprise Linux 7, SUSE Linux Enterprise Server 11 for AMD64/EM64T, SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T, SUSE Linux Enterprise Server 12, SUSE Linux Enterprise Server 12 with XEN, VMware vSphere ESXi 6.0, VMware vSphere ESXi 6.5
Compatibility
SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530
