Lenovo 7Y37A01089 - PCIe - SAS,SATA - Full-height / Low-profile - PCIe 3.0 - Black,Green - FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe... - 7Y37A01089

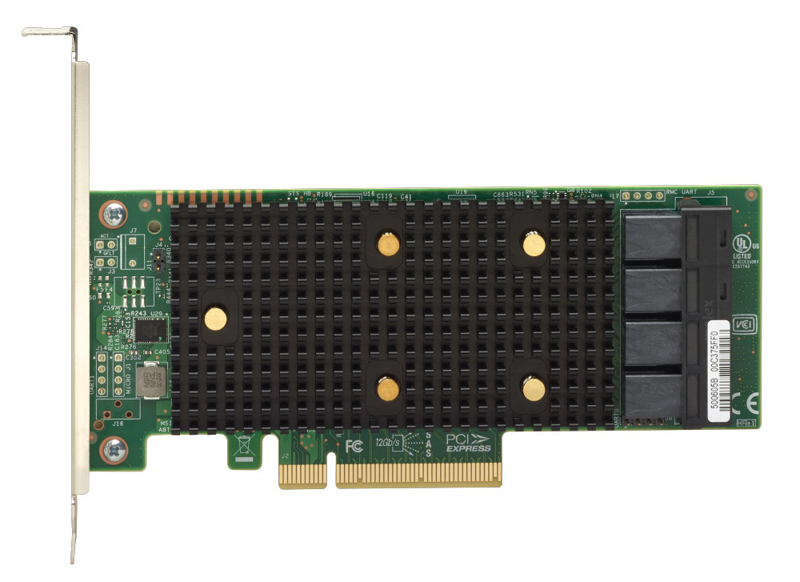

ThinkSystem 430-16i SAS/SATA 12Gb HBA
SEK 2,459.82 Exkl. moms
SEK 3,074.78 Inkl. moms
SKU: 7Y37A01089
Kondition: New
Lagerstatus: (1) In Stock
Garanti: Learn More
Betalning och fraktmetoder:

Got Questions? Click here to chat with our presales consultant and make the right purchase.


OBS: Informationen nedan tillhandahålls endast för din bekvämlighet, specifikationernas noggrannhet kan inte garanteras. Men om det behövs, vänligen verifiera med oss ​​innan du köper. Data tillhandahålls av 1 World Sync

General
Host interface
PCIe
Output interface
SAS,SATA
Expansion card form factor
Full-height / Low-profile
Product colour
Black,Green
Certification
FCC Part 15 Class A, Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES-003 Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), WEEE, EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B class B)
Data transfer rate (max)
12000 Gbit/s
Compatible operating systems
Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Red Hat Enterprise Linux 6 Server x64 Edition, Red Hat Enterprise Linux 7, SUSE Linux Enterprise Server 11 for AMD64/EM64T, SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T, SUSE Linux Enterprise Server 12, SUSE Linux Enterprise Server 12 with XEN, VMware vSphere ESXi 6.0, VMware vSphere ESXi 6.5
Compatibility
ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950,
Download Link

Lenovo 7Y37A01089. Host interface: PCIe, Output interface: SAS,SATA, Expansion card form factor: Full-height / Low-profile. Product colour: Black,Green, Certification: FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe.... Data transfer rate (max): 12000 Gbit/s. Compatible operating systems: Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server..., Compatibility: ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950,

https://lenovopress.com/lp0649-thinksystem-430-8i-16i-internal-sas-hba

The Lenovo ThinkSystem 430-8i and 430-16i SAS/SATA 12Gb HBAs are high performance host bus adapters for internal storage connectivity in ThinkSystem servers. They integrate the latest enhancements SAS technology and offer eight or 16 lanes of 12 Gbps SAS.

This product guide provides essential presales information to understand the ThinkSystem internal HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.

  • PCIe 3.0 x8 host interface
  • Two internal x4 HD Mini-SAS connectors (SFF-8643)
  • Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
  • Support internal SAS tape drives
  • Optimized for SSD performance
  • High performance architecture with very deep queue depth
  • Advanced power management support
  • Support for SSP, SMP, STP, and SATA protocols
  • End-to-End CRC with Advanced Error Reporting
  • Spread Spectrum Clocking for EMI reductions
  • Supports 512e, 512n and 4K (when available) formatted drives
  • 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
  • Compliant with Disk Data Format (DDF) configuration on disk (CoD)
  • S.M.A.R.T. support
  • Configuration through
  • XClarity Provisioning Manager UEFI interface
  • XClarity Controller web interface
  • XClarity Administrator Configuration Patterns
  • StorCLI command-line interface
  • LSI Storage Authority (LSA) GUI interface
  • UEFI Human Interface Infrastructure (HII)
  • PCI low profile, half-length form factor
  • 8 or 16 internal 12 Gbps SAS/SATA ports
  • 430-8i support connectivity to 8 internal drives
  • 430-16i support connectivity to 16 internal drives
  • Up to 12 Gbps throughput per port
  • Supports 12, 6, or 3 Gbps SAS speeds
  • Supports 6 or 3 Gbps SATA speeds
