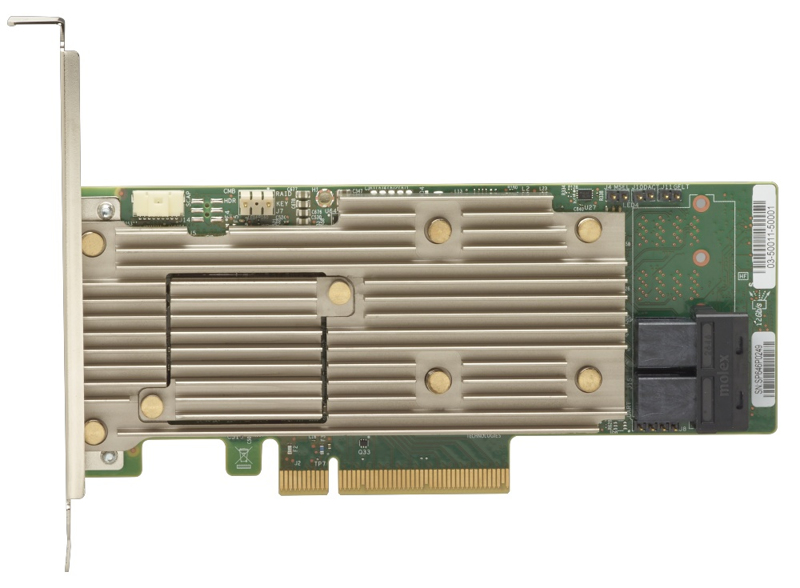

Lenovo 7Y37A01084 - SAS,Serial ATA III - PCI Express x8 - 12000 Gbit/s - LSI SAS3508 - FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe... - SUSE Linux Enterprise Desktop 11,SUSE Linux Enterprise Desktop 12 - 7Y37A01084

RAID 930-8i - PCIe 3.0 x8 - 8x 12 Gb SAS - 2x Mini-SAS HD x4
SEK 7,524.31 Exkl. moms
SEK 9,405.39 Inkl. moms
SKU: 7Y37A01084
Kondition: New
Lagerstatus: (10) In Stock
Garanti: Learn More
Betalning och fraktmetoder:

Got Questions? Click here to chat with our presales consultant and make the right purchase.


OBS: Informationen nedan tillhandahålls endast för din bekvämlighet, specifikationernas noggrannhet kan inte garanteras. Men om det behövs, vänligen verifiera med oss ​​innan du köper. Data tillhandahålls av 1 World Sync

General
Supported storage drive interfaces
SAS,Serial ATA III
Host interface
PCI Express x8
Data transfer rate
12000 Gbit/s
Chipset
LSI SAS3508
Certification
FCC Part 15 Class A, Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES-003 Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B class B), WEEE
Linux operating systems supported
SUSE Linux Enterprise Desktop 11,SUSE Linux Enterprise Desktop 12
Compatible operating systems
Red Hat Enterprise Linux 6 Server x64 Edition, Red Hat Enterprise Linux 7, VMware vSphere ESXi 6.0, VMware vSphere ESXi 6.5
Server operating systems supported
Windows Server 2012 R2,Windows Server 2016
PCI Card form factor
Full-height (low-profile)
Download Link

Lenovo 7Y37A01084. Supported storage drive interfaces: SAS,Serial ATA III, Host interface: PCI Express x8. Data transfer rate: 12000 Gbit/s, Chipset: LSI SAS3508, Certification: FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe.... Linux operating systems supported: SUSE Linux Enterprise Desktop 11,SUSE Linux Enterprise Desktop 12, Compatible operating systems: Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 VMware vSphere ESXi 6.0..., Server operating systems supported: Windows Server 2012 R2,Windows Server 2016. PCI Card form factor: Full-height (low-profile)

https://lenovopress.com/lp0652-thinksystem-raid-930-series-internal-raid-adapters

The ThinkSystem RAID 930 family of internal 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) adapters. These adapters support RAID levels 0/1/10/5/50/6/60, and include an extensive list of RAS and management features.

This product guide provides essential presales information to understand the ThinkSystem RAID 930-4i, 8i, 16i and 24i adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions.

  • CIe 3.0 x8 host interface
  • Support for logical drive sizes greater than 2 TB
  • Configurable stripe size from 64 KB up to 1 MB
  • Supports 512e, 512n and 4K sector formatted drives
  • Compliant with Disk Data Format (DDF) configuration on disk (CoD)
  • S.M.A.R.T. support
  • Configuration through
  • XClarity Provisioning Manager UEFI interface
  • XClarity Controller web interface
  • XClarity Administrator Configuration Patterns
  • StorCLI command-line interface
  • 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 9460 adapter family
  • LSI Storage Authority (LSA) GUI interface
  • UEFI Human Interface Infrastructure (HII)
  • 2GB or 4GB of integrated flash-backed cache
  • Connectivity for up to 2, 8, 16 or 24 internal SAS or SATA drives
  • Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported
  • Support for intermixing of 12 Gbps and 6 Gbps drives
  • Support for RAID 0, 1, 10, 5, 50, 6 and 60 standard (The 930-4i supports only RAID 0, 1 in the SN550 and RAID 0, 1, 5, 6 in the SN850 because those blade servers only support two and four drives respectively)
  • Support for JBOD (non-RAID) drive state
  • Support for up to 64 virtual disks, up to 128 arrays, up to 16 virtual disks per array
