Ubiquiti IsoStation IS-5AC - Wireless Bridge - AirMax AC - IS-5AC

Ubiquiti Networks IsoStation AC. Maximum data transfer rate: 450 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s, Frequency band: 2.412 - 2.462, 5.15 - 5.875, 5.15 - 5.25, 5.725 - 5.85 GHz. Security algorithms: WPA2. AC input voltage: 24 V, Input current: 0.5 A, Power consumption (typical): 8.5 W. Placement: Ceiling, Wall, Product colour: White, LED indicators: Power. Antenna gain level (max): 14 dBi

https://www.ubnt.com/airmax/isostation-ac/

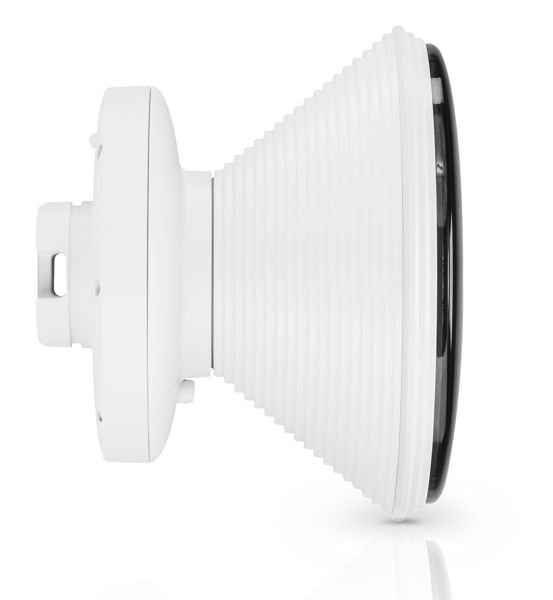

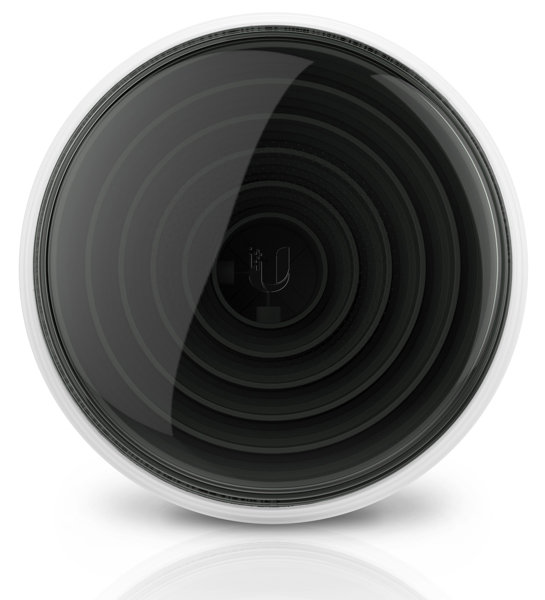

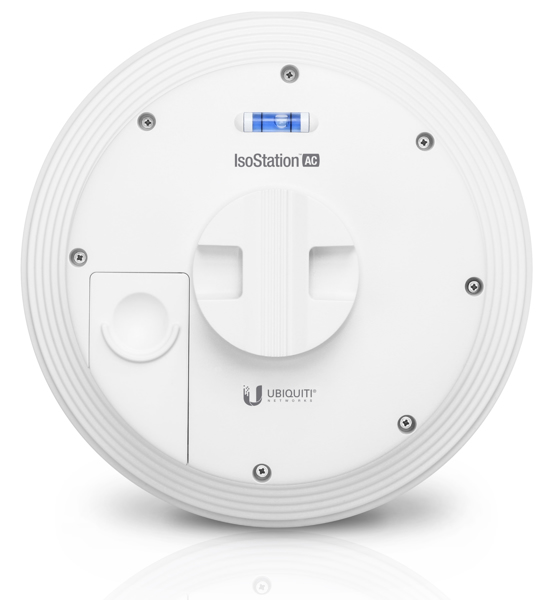

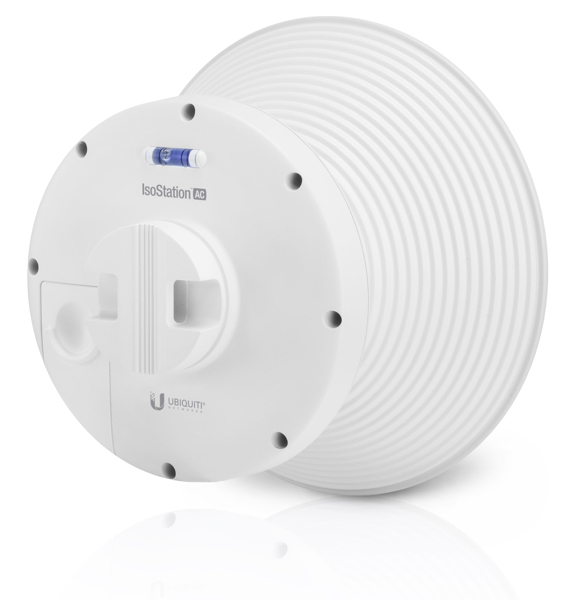

With a die-cast aluminum base and interchangeable antenna, the IsoStationΓäó is available in two models and brings increased performance to your network using technology that isolates beam communications between your devices. The IsoStation AC delivers throughput speeds of up to 450+ Mbps, and the IsoStation M5 delivers throughput speeds of up to 100+ Mbps.

Modular Design
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.

Beam Performance Perfected
The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location
Asymmetrical horn antenna options (60┬░ and 90┬░) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30┬░ and 45┬░, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity
IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

High MAC Efficiency
High MAC efficiency provides ┬▒80% PHY RATE throughput.

Management Wi-Fi Radio
The IsoStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
