DIGITUS CAT6 F-UTP Kabel 305m - DK-1624-VH-305

Digitus Cat.6 F/UTP installationskabel, 305 m, simplex, Dca. Kabellängd: 305 m, Kabelstandard: Cat6, Kabelskärmning: F/UTP (FTP), Dataöverföringshastighet: 1000 Mbit/s

https://www.digitus.info/

Future-oriented standards and high-end quality for your network.

- 1GBit Ethernet
- 250 MHz transmission frequency
- PoE Power over Ethernet support
- CPR class Dca

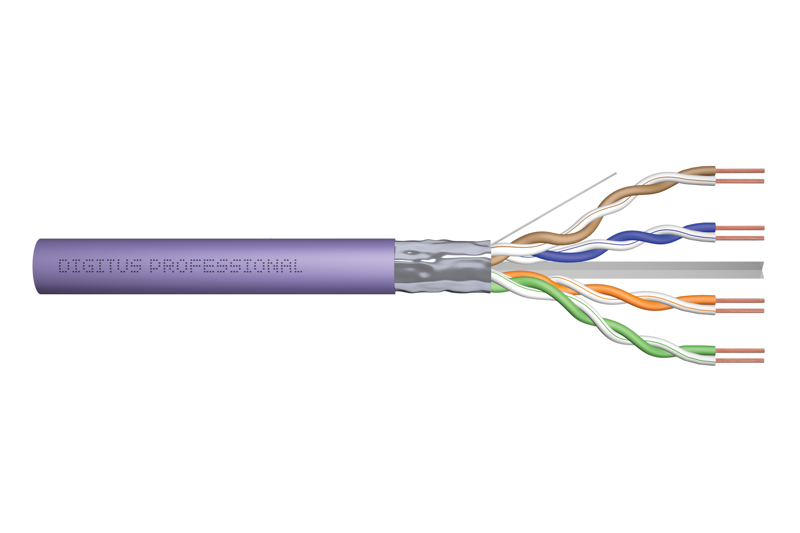

The Digitus® Professional Cat.6 F/UTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 250 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-5-1.

• Physical properties:
• Outer sheath color: Purple
• Mechanical properties:
• Tensile loading: 150N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -20 ┬░C up to +60 ┬░C
• Operating temperature range: -20 ┬░C up to +75 ┬░C
• Installation temperature range: 0 ┬░C up to +50 ┬░C
• Overall diameter Simplex (nominal): 7.0 (Eca); 7,2 mm (Dca); 7,6 mm (Cca); 7,6 mm (B2ca)
• Weight (kg/km): 46 kg (Eca); 47 kg (Dca); 48,5 kg (Cca); 48,5 kg (B2ca)
• Conductor: Bare annealed copper, solid AWG 23/1
• Electrical properties:
• Impedance: 100┬▒5 Ohm @ 1-250 MHz
• Capacitance: 45 pF/m nominal @ 800 Hz
• Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 5 GOhm x km min.
• DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: 40 dB
• Signal propagation delay: 535 nS/100 m max.
• Propagation delay: 20 nS/100 m max.
• Insulation: HD-PE (High Density Polyethylene)
• Separating class: ,,cΓÇ¥ acc. to EN 50174-2
• NVP: 69%
• Total number of insulated conductors: 8, twisted in 4 pairs
• Color code: Blue-white, orange-white, green-white, brown-white
• Individual pair shield: None
• Overall shielding: Aluminum foil, providing 100% coverage, drain wire
• Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
• Outer sheath diameter (nominal): 0.5 mm (Eca); 0,6 mm (Dca); 0,8 mm (Cca); 0,08 mm (B2ca)
